AKM-2 Automatic Mass Comparator
This image is for reference only.
Exit
This image is for reference only.
Availability:
To order
Estimated shipping date :
Ask for delivery time
Need it urgently? Call us to check real-time stock availability: +44 (0)1625 569569
Price:
69651.60
GBP
with 20% VAT, shipping cost not included
Choose a variant:
AKM-2.20.5Y Automatic Mass Comparators
- AKM-2.20.5Y Automatic Mass ComparatorsMax: 20.5kg | d: 0,1mg
- AKM-2.50.5Y Automatic Mass ComparatorsMax: 51kg | d: 1mg
- AKM-2.50.1.5Y Automatic Mass ComparatorsMax: 50.5kg | d: 0,1mg
Pcs.
Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
We have been manufacturing weighing devices since 1984.
RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569
Delivery only on the territory of United Kingdom
Optional paid installation and training service available - please contact us for details and pricing.
Datasheet - AKM-2.20.5Y Automatic Mass ComparatorsCode:
WL-411-0013
2 years warranty
CE
Datasheet
E0 Calibration Range
5 – 20 kg *
E1 Calibration Range
5 – 20 kg
E2 Calibration Range
1 – 20 kg
F1 Calibration Range
1 – 20 kg
F2 Calibration Range
1 – 20 kg
Maximum capacity [Max]
20,5 kg
Readability [d]
0,1 mg
Standard repeatability [Max]
0,2 mg
Standard repeatability [5% Max]
0,15 mg
Permissible repeatability
0,3 mg
Linearity
±0,5 mg
Eccentricity (tested load)
0 mg
Electric compensation range
-500 g – +500 g
Stabilization time
30 s
Adjustment
internal (automatic)
Display
10″ graphic colour touchscreen
Supplementary weights
internal (automatic)
Supplementary weights external
-
Communication interface
2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi®, Hotspot
Power supply
100 – 240 V AC 50/60 Hz
Operating temperature
+15 – +30 °C
Operating temperature change rate
±0,5 °C / 12 h (±0,3 °C / 4 h)
Relative humidity
40% – 60%
Relative humidity change rate
±5% / 12 h (3% / 4 h)
Weighing pan dimensions
ø190 mm - self centering
Weighing device dimensions
1150×770×1300 mm
Controling device dimensions
249×170×72 mm
Packaging dimensions W x D x H
1150×770×1300 mm
Net weight
235 kg
Gross weight
352 kg
Overview

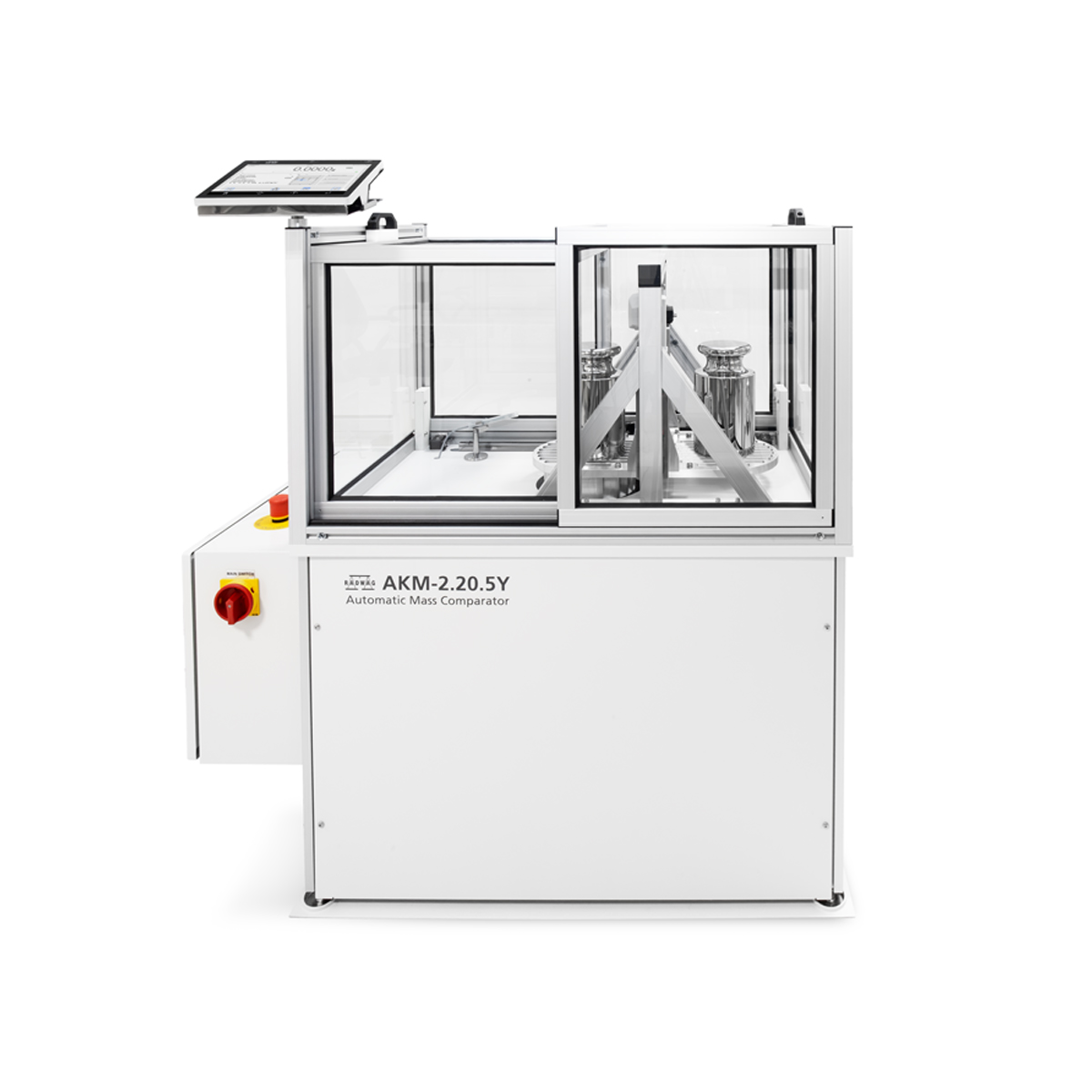

AKM-2.20.5Y Automatic Mass Comparators
What is the AKM-2 Automatic Mass Comparator?
It is a device for automatic determination of mass deviations of a single mass standard in one measurement cycle. AKM-2.20.5Y comes in a 2-position version: for 1 reference standard and 1 test standard. For maximum convenience, the device is equipped with an automatic sliding feeder, which facilitates the application of mass standards with large masses. The AKM-2.20.5Y mass comparator allows comparison of mass standards with masses of 5–20 kg in E1 class and 1–20 kg in E2 class and lower.
How Does the Mass Comparator Work?
The supervising part of a mass comparator is a digital module which cooperates with a controller of device’s mechanical components. The automatic mass loader (loading robot) features a basis with self-centering fields, lift and weighing module equipped with a self-centering pan. The digital module and the loading robot are located in mass comparator’s weighing chamber. The lift is handled by a comparator controller. The device is operated by means of digital display which is plugged to mass comparator’s controller.
Lengthwise shift of the loading robot with mass standards is carried out automatically using solenoid actuators, which eliminates comparator eccentricity errors. Additional software functions enable loading and taking off the mass standards, data processing and storing, and data exporting to device’s memory.
Want to Know More Advantages?
Here They Are:
Fully automatic change of the comparison range
With this function, the device itself selects the appropriate comparison range depending on the mass of the sample.
Capability to perform the dissemination process
The ability of the device to transfer the measurement readability that the mass standard has to other working masses.
2-position magazine
for 1 reference standard and 1 test standard.
Anti-vibration table with granite stone
It reduces the influence of ambient vibrations to a minimum.
Anti-draft weighing chamber
included as standard equipment.
What Else? 5Y Weighing Terminal
Our mass comparators are equipped with a state-of-the-art 5Y weighing terminal, which makes work much easier thanks to its large display and multiple interfaces.
The 5Y Weighing Terminal connects directly to:
- Smartphone or tablet (Hotspot)
- Spreadsheet (USB-C, Free Link)
- Printer (Ethernet, Wi-Fi, USB-A)
- Computer (Ethernet, Wi-Fi, USB-A)
- Barcode scanner (USB-A)
- Any large screen (HDMI)
- Computer software (RADWAG communication protocol)
- Keyboard and mouse.
AKM-2 automatic comparators, thanks to the elimination of the “human factor”, temperature changes and air drafts, are characterized by the best repeatability of measurements – much better than manual comparators.
