Datasheet - 5Y.50.PM.KB Mass Comparator

Code:

WL-416-0005

2 years warranty

Datasheet

E1 Calibration Range

E2 Calibration Range

F1 Calibration Range

F2 Calibration Range

50 kg

M1 Calibration Range

10 – 50 kg

M2 Calibration Range

5 – 50 kg

Maximum capacity [Max]

51 kg

Readability [d]

100 mg

Standard repeatability [Max]

100 mg

Standard repeatability [5% Max]

70 mg

Permissible repeatability

150 mg

Linearity

±0,3 g

Eccentricity (tested load)

1d / 2 mm

Electric compensation range

0 – 51 kg

Stabilization time

3 s

Adjustment

internal

Display

10″ graphic colour touchscreen

Communication interface

2×USB-A, USB-C, RS 232 (COM3), HDMI, Ethernet, Wi-Fi^®, Hotspot

Operating temperature

+10 – +40 °C

Operating temperature change rate

±2 °C / 12 h

Relative humidity

30% – 70%

Relative humidity change rate

±10% / 4 h

Weighing pan dimensions

302×252 mm

Weighing device dimensions

370×280×150 mm

Controling device dimensions

249×170×72 mm

Packaging dimensions W x D x H

520×520×280 mm

Net weight

12 kg

Gross weight

14,2 kg

Overview

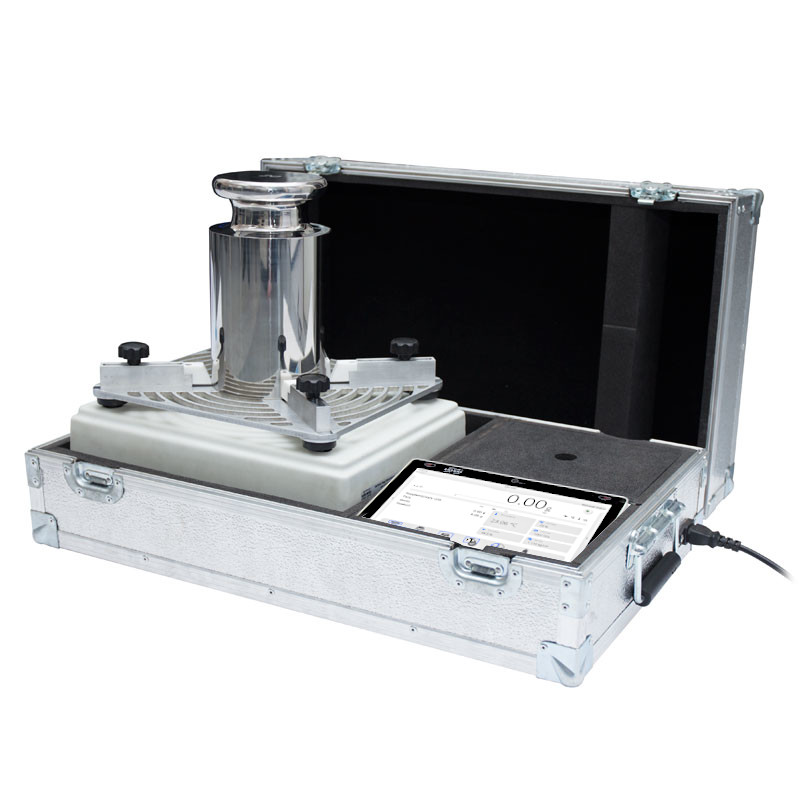

5Y.50.PM.KB Mass Comparator

5Y.PM.KB Manual Mass Comparators enable adjusting mass standards and weights according to OIML (R-111) recommendations. Used in accredited calibration laboratories, they are designed to ensure the traceability of mass measurements and verification of weights, as required by legal metrology. The equipment can be used not only for comparisons, but also for weighing and other related operations that are specific to the PM 5Y series precision balances.

5Y.PM.KB Mass Comparator – a Clever Design

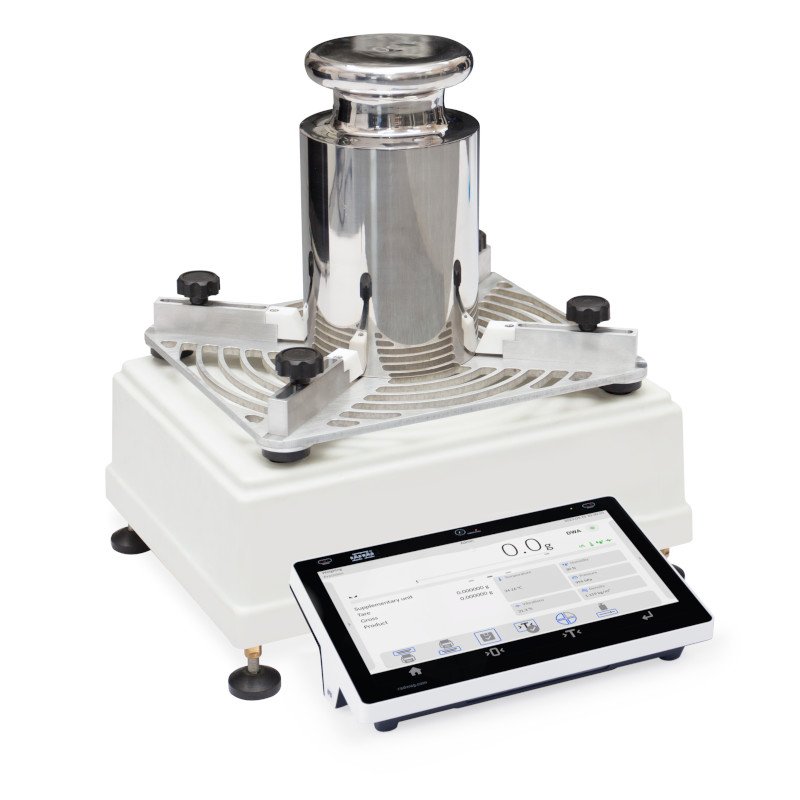

The 5Y.PM.KB mass comparator consists of an electronic module and a precision mechanical measuring system. The aluminium open-work weighing pan has centering holders that facilitate precise weights placement. This solution is particularly helpful when working with large and heavy mass standards.

How Many Interfaces Does the 5Y.PM.KB Mass Comparator Have and What Can You Connect to Them?

The 5Y.PM.KB mass comparator has the following communication interfaces: 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi and Hotspot, through which it connects to devices, accessories and applications such as:

Smartphone
Tablet
Laptop and computer

Printer
Barcode scanner
Additional screen

Keyboard
Mouse
Spreadsheet.

More Possibilities Thanks to Special Software

RADWAG offers specialised software programs which will allow you to achieve more objectives in your daily work:

RMCS System – manages the complete calibration process from the acceptance of the order to the issuing of the calibration certificate.

In addition, we offer a huge selection of devices, software and other accessories that work with 5Y.PM.KB mass comparators: receipt printers, label printers, barcode scanners, RAD KEY software, THBR 2.0 System, Fingerprint Reader, antivibration tables, storage cases, protective covers, additional modules (RES Radwag Extended SI Module and CFR 21 Part 11 Compliance Module), RS 232 and RS 485 cables.

What Does the 5Y.PM.KB Mass Comparator Owe to the 5Y Terminal?

With the 5Y.PM.KB mass comparator you get the 5Y Weighing Terminal, which provides the following features and functionalities:

A convenient 10’ touchscreen display
DWA^® (Digital Weighing Auditor)
4 secure login options (password, fingerprint, face recognition, RFID tags* and their combination)
Ambient Light messages
Hotspot
Text Live Note
Voice commands via microphone
Measurement history in the Handy Library
Selectable widgets.
