HRP 5Y.KO Mass Comparator

HRP 200.5Y.KO Mass Comparator
This image is for reference only.
HRP 200.5Y.KO Mass ComparatorHRP 200.5Y.KO Mass Comparator
close Exit
This image is for reference only.
HRP 200.5Y.KO Mass ComparatorHRP 200.5Y.KO Mass Comparator
Availability:
To order
Estimated shipping date :
Ask for delivery time
Price:
25024.80
 GBP
with 20% VAT, shipping cost not included
Choose a variant:
HRP 200.5Y.KO Mass Comparatorkeyboard_arrow_down
  • HRP 200.5Y.KO Mass Comparator
    Max: 210kg | d: 0,2g
  • HRP 1000.5Y.KO Mass Comparator
    Max: 1050kg | d: 1g
  • HRP 500.5Y.KO Mass Comparator
    Max: 510kg | d: 0,5g
  • HRP 2000.5Y.KO Mass Comparator
    Max: 2100kg | d: 2g
  • HRP 500.1.5Y.KO Mass Comparator
    Max: 510kg | d: 0,1g
  • HRP 150.1.5Y.KO Mass Comparator
    Max: 151kg | d: 0,05g
  • HRP 1000.1.5Y.KO Mass Comparator
    Max: 1050kg | d: 0,5g

Pcs.

Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569


Delivery only on the territory of United Kingdom
Code:
WL-414-0024

Buying from the producer is all about the pros


✓ Update as standard

You always get the latest version of the device and software. We are constantly improving our products.

✓ This is priceless

Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

✓ Smaller carbon footprint

A solidly packaged shipment travels only one way – the one to you.

✓ Long life for your balance

In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

✓ The important thing

You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

Overview


The HRP 5Y.KO series of mass comparators enables calibrating mass standards and weights in accordance with OIML Recommendation (R-111) for class F2 and lower classes.

Comparators are used to ensure consistency in mass measurements as well as to verify weights according to legal metrology requirements. RADWAG mass comparators have been recognized by calibration laboratories in many countries.

The HRP 5Y.KO mass comparators consist of two elements: a professional weighing platform (modern design of an electromagnetic mechanism in a hermetic steel casing) and 5Y terminal. The weighing platform is made of steel and features marks facilitating centric loading of mass standards.

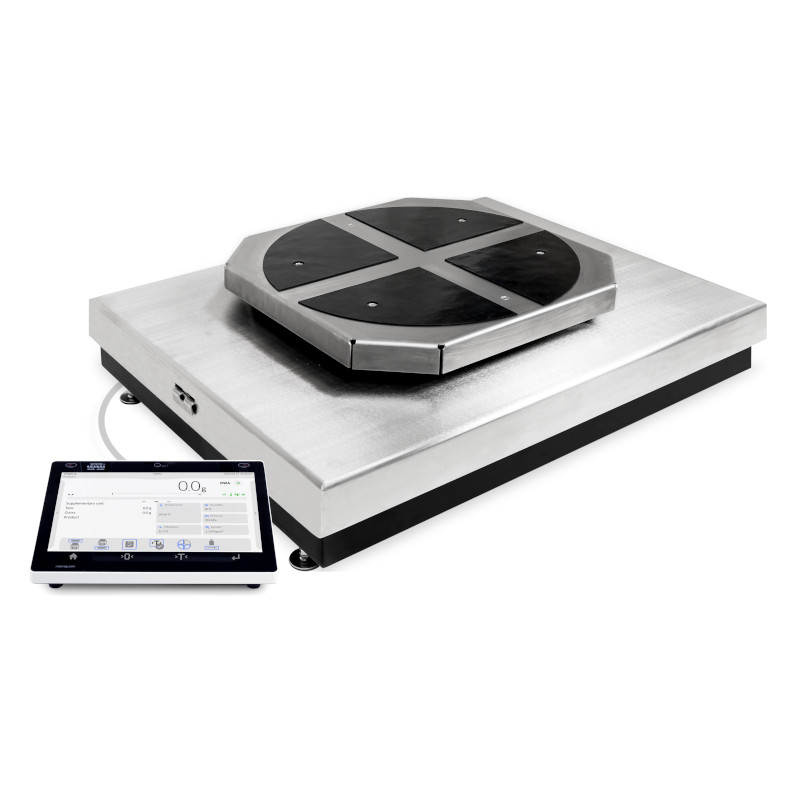

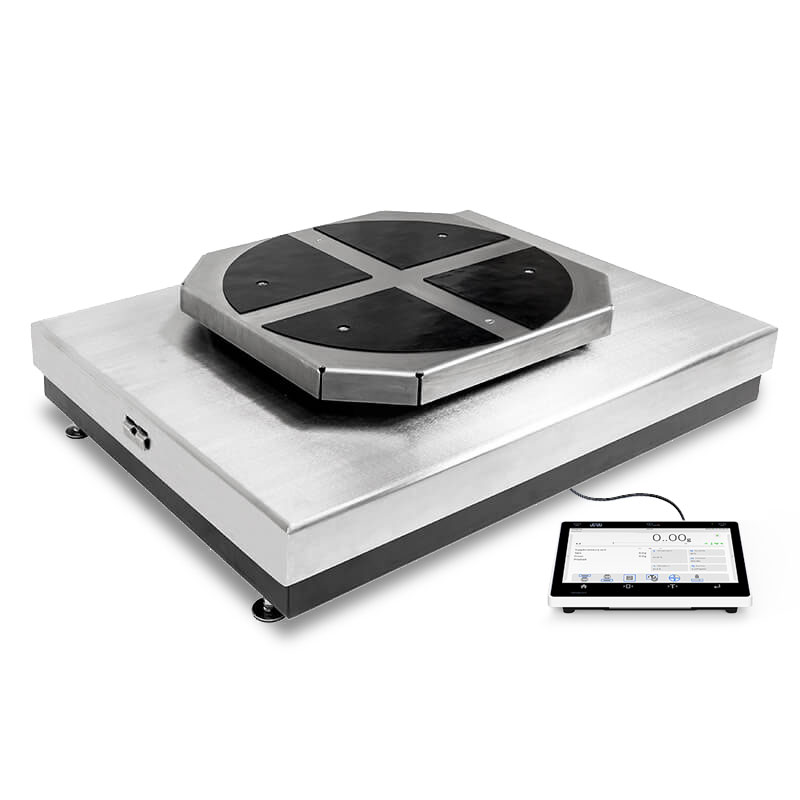

The comparator can be equipped with a self-centring weighing pan (extra charge), which significantly minimises the influence of eccentricity during measurements. The self-centring weighing pan eliminates the error of placing the weight "out of pan centre". This solution also enables calibrating weights of different shapes and dimensions without the need to set the positioners for central loading of the mass standard each time.

The comparator has a user-friendly menu.

Data security and work results archiving are ensured by RADWAG terminal software.

2 years warranty
2 years warranty
CE
CE

Datasheet

E1 Calibration Range
-
E2 Calibration Range
-
F1 Calibration Range
-
F2 Calibration Range
200 kg
M1 Calibration Range
50 – 200 kg
M2 Calibration Range
10 – 200 kg
Maximum capacity [Max]
210 kg
Readability [d]
0,2 g
Standard repeatability [5% Max]
0,4 g
Standard repeatability [Max]
0,6 g
Permissible repeatability
1 g
Eccentricity (tested load)
2d / 1 mm
Electric compensation range
0 – 210 kg
Stabilization time
10 s
Adjustment
internal (automatic)
Display
10″ graphic colour touchscreen
Recommended load speed
0,3 m/min
Maximum permissible load speed
0,6 m/min
Communication interface
2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot
Operating temperature
+15 – +30 °C
Operating temperature change rate
±1 °C / 12 h
Relative humidity
40% – 60%
Relative humidity change rate
±5% / 4 h
Weighing pan dimensions
800×600 mm
Self-centering weighing pan dimensions
600×600 (extra charge) mm
Weighing unit dimensions without self-centering weighing pan
810×600×165 mm
Weighing unit dimensions with self-centering weighing pan
810×600×260 mm
Controling device dimensions
249×170×72 mm
Comparator packaging dimensions without self-centering weighing pan
1000×800×310 mm
Comparator packaging dimensions with self-centering weighing pan
1000×800×355 mm
Net weight
106 kg
Gross weight
141 kg
HRP 1000.5Y.KO Mass Comparator
This image is for reference only.
HRP 1000.5Y.KO Mass ComparatorHRP 1000.5Y.KO Mass Comparator
close Exit
This image is for reference only.
HRP 1000.5Y.KO Mass ComparatorHRP 1000.5Y.KO Mass Comparator
Availability:
To order
Estimated shipping date :
Ask for delivery time
Price:
25024.80
 GBP
with 20% VAT, shipping cost not included
Choose a variant:
HRP 1000.5Y.KO Mass Comparatorkeyboard_arrow_down
  • HRP 200.5Y.KO Mass Comparator
    Max: 210kg | d: 0,2g
  • HRP 1000.5Y.KO Mass Comparator
    Max: 1050kg | d: 1g
  • HRP 500.5Y.KO Mass Comparator
    Max: 510kg | d: 0,5g
  • HRP 2000.5Y.KO Mass Comparator
    Max: 2100kg | d: 2g
  • HRP 500.1.5Y.KO Mass Comparator
    Max: 510kg | d: 0,1g
  • HRP 150.1.5Y.KO Mass Comparator
    Max: 151kg | d: 0,05g
  • HRP 1000.1.5Y.KO Mass Comparator
    Max: 1050kg | d: 0,5g

Pcs.

Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569


Delivery only on the territory of United Kingdom
Code:
WL-414-0027

Buying from the producer is all about the pros


✓ Update as standard

You always get the latest version of the device and software. We are constantly improving our products.

✓ This is priceless

Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

✓ Smaller carbon footprint

A solidly packaged shipment travels only one way – the one to you.

✓ Long life for your balance

In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

✓ The important thing

You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

Overview


The HRP 5Y.KO series of mass comparators enables calibrating mass standards and weights in accordance with OIML Recommendation (R-111) for class F2 and lower classes.

Comparators are used to ensure consistency in mass measurements as well as to verify weights according to legal metrology requirements. RADWAG mass comparators have been recognized by calibration laboratories in many countries.

The HRP 5Y.KO mass comparators consist of two elements: a professional weighing platform (modern design of an electromagnetic mechanism in a hermetic steel casing) and 5Y terminal. The weighing platform is made of steel and features marks facilitating centric loading of mass standards.

The comparator can be equipped with a self-centring weighing pan (extra charge), which significantly minimises the influence of eccentricity during measurements. The self-centring weighing pan eliminates the error of placing the weight "out of pan centre". This solution also enables calibrating weights of different shapes and dimensions without the need to set the positioners for central loading of the mass standard each time.

The comparator has a user-friendly menu.

Data security and work results archiving are ensured by RADWAG terminal software.

2 years warranty
2 years warranty
CE
CE

Datasheet

E1 Calibration Range
-
E2 Calibration Range
-
F1 Calibration Range
-
F2 Calibration Range
500 – 1000 kg
M1 Calibration Range
200 – 1000 kg
M2 Calibration Range
100 – 1000 kg
Maximum capacity [Max]
1050 kg
Readability [d]
1 g
Standard repeatability [5% Max]
1,5 g
Standard repeatability [Max]
2,5 g
Permissible repeatability
5 g
Eccentricity (tested load)
1d / 1 mm
Electric compensation range
0 – 1050 kg
Stabilization time
10 s
Adjustment
internal (automatic)
Display
10″ graphic colour touchscreen
Recommended load speed
0,3 m/min
Maximum permissible load speed
0,6 m/min
Communication interface
2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot
Operating temperature
+15 – +30 °C
Operating temperature change rate
±1 °C / 12 h
Relative humidity
40% – 60%
Relative humidity change rate
±5% / 4 h
Weighing pan dimensions
1000×800 mm
Self-centering weighing pan dimensions
600×600 (extra charge) mm
Weighing unit dimensions without self-centering weighing pan
1010×800×182 mm
Weighing unit dimensions with self-centering weighing pan
1010×800×275 mm
Controling device dimensions
249×170×72 mm
Comparator packaging dimensions without self-centering weighing pan
1200×1000×440 mm
Comparator packaging dimensions with self-centering weighing pan
1200×1000×485 mm
Net weight
200 kg
Gross weight
269 kg
HRP 500.5Y.KO Mass Comparator
This image is for reference only.
HRP 500.5Y.KO Mass ComparatorHRP 500.5Y.KO Mass Comparator
close Exit
This image is for reference only.
HRP 500.5Y.KO Mass ComparatorHRP 500.5Y.KO Mass Comparator
Availability:
To order
Estimated shipping date :
Ask for delivery time
Price:
25024.80
 GBP
with 20% VAT, shipping cost not included
Choose a variant:
HRP 500.5Y.KO Mass Comparatorkeyboard_arrow_down
  • HRP 200.5Y.KO Mass Comparator
    Max: 210kg | d: 0,2g
  • HRP 1000.5Y.KO Mass Comparator
    Max: 1050kg | d: 1g
  • HRP 500.5Y.KO Mass Comparator
    Max: 510kg | d: 0,5g
  • HRP 2000.5Y.KO Mass Comparator
    Max: 2100kg | d: 2g
  • HRP 500.1.5Y.KO Mass Comparator
    Max: 510kg | d: 0,1g
  • HRP 150.1.5Y.KO Mass Comparator
    Max: 151kg | d: 0,05g
  • HRP 1000.1.5Y.KO Mass Comparator
    Max: 1050kg | d: 0,5g

Pcs.

Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569


Delivery only on the territory of United Kingdom
Code:
WL-414-0025

Buying from the producer is all about the pros


✓ Update as standard

You always get the latest version of the device and software. We are constantly improving our products.

✓ This is priceless

Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

✓ Smaller carbon footprint

A solidly packaged shipment travels only one way – the one to you.

✓ Long life for your balance

In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

✓ The important thing

You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

Overview


The HRP 5Y.KO series of mass comparators enables calibrating mass standards and weights in accordance with OIML Recommendation (R-111) for class F2 and lower classes.

Comparators are used to ensure consistency in mass measurements as well as to verify weights according to legal metrology requirements. RADWAG mass comparators have been recognized by calibration laboratories in many countries.

The HRP 5Y.KO mass comparators consist of two elements: a professional weighing platform (modern design of an electromagnetic mechanism in a hermetic steel casing) and 5Y terminal. The weighing platform is made of steel and features marks facilitating centric loading of mass standards.

The comparator can be equipped with a self-centring weighing pan (extra charge), which significantly minimises the influence of eccentricity during measurements. The self-centring weighing pan eliminates the error of placing the weight "out of pan centre". This solution also enables calibrating weights of different shapes and dimensions without the need to set the positioners for central loading of the mass standard each time.

The comparator has a user-friendly menu.

Data security and work results archiving are ensured by RADWAG terminal software.

2 years warranty
2 years warranty
CE
CE

Datasheet

E1 Calibration Range
-
E2 Calibration Range
-
F1 Calibration Range
-
F2 Calibration Range
500 kg
M1 Calibration Range
100 – 500 kg
M2 Calibration Range
50 – 500 kg
Maximum capacity [Max]
510 kg
Readability [d]
0,5 g
Standard repeatability [5% Max]
0,6 g
Standard repeatability [Max]
1,5 g
Permissible repeatability
3 g
Eccentricity (tested load)
2d / 1 mm
Electric compensation range
0 – 510 kg
Stabilization time
10 s
Adjustment
external
Display
10″ graphic colour touchscreen
Recommended load speed
0,3 m/min
Maximum permissible load speed
0,6 m/min
Communication interface
2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot
Operating temperature
+15 – +30 °C
Operating temperature change rate
±1 °C / 12 h
Relative humidity
40% – 60%
Relative humidity change rate
±5% / 4 h
Weighing pan dimensions
800×600 mm
Self-centering weighing pan dimensions
600×600 (extra charge) mm
Weighing unit dimensions without self-centering weighing pan
810×600×165 mm
Weighing unit dimensions with self-centering weighing pan
810×600×260 mm
Controling device dimensions
249×170×72 mm
Comparator packaging dimensions without self-centering weighing pan
988×800×310 mm
Comparator packaging dimensions with self-centering weighing pan
988×800×355 mm
Net weight
13,5 kg
Gross weight
166,5 kg
HRP 2000.5Y.KO Mass Comparator
This image is for reference only.
HRP 2000.5Y.KO Mass Comparator
close Exit
This image is for reference only.
HRP 2000.5Y.KO Mass Comparator
Availability:
To order
Estimated shipping date :
Ask for delivery time
Price:
Individual pricing
Choose a variant:
HRP 2000.5Y.KO Mass Comparatorkeyboard_arrow_down
  • HRP 200.5Y.KO Mass Comparator
    Max: 210kg | d: 0,2g
  • HRP 1000.5Y.KO Mass Comparator
    Max: 1050kg | d: 1g
  • HRP 500.5Y.KO Mass Comparator
    Max: 510kg | d: 0,5g
  • HRP 2000.5Y.KO Mass Comparator
    Max: 2100kg | d: 2g
  • HRP 500.1.5Y.KO Mass Comparator
    Max: 510kg | d: 0,1g
  • HRP 150.1.5Y.KO Mass Comparator
    Max: 151kg | d: 0,05g
  • HRP 1000.1.5Y.KO Mass Comparator
    Max: 1050kg | d: 0,5g
We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569


Delivery only on the territory of United Kingdom
Code:
WL-414-0028

Buying from the producer is all about the pros


✓ Update as standard

You always get the latest version of the device and software. We are constantly improving our products.

✓ This is priceless

Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

✓ Smaller carbon footprint

A solidly packaged shipment travels only one way – the one to you.

✓ Long life for your balance

In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

✓ The important thing

You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

Overview


The HRP 5Y.KO series of mass comparators enables calibrating mass standards and weights in accordance with OIML Recommendation (R-111) for class F2 and lower classes.

Comparators are used to ensure consistency in mass measurements as well as to verify weights according to legal metrology requirements. RADWAG mass comparators have been recognized by calibration laboratories in many countries.

The HRP 5Y.KO mass comparators consist of two elements: a professional weighing platform (modern design of an electromagnetic mechanism in a hermetic steel casing) and 5Y terminal. The weighing platform is made of steel and features marks facilitating centric loading of mass standards.

The comparator has a user-friendly menu.

Data security and work results archiving are ensured by RADWAG terminal software.

CE
CE
2 years warranty
2 years warranty

Datasheet

E1 Calibration Range
-
E2 Calibration Range
-
F1 Calibration Range
-
F2 Calibration Range
2000 kg
M1 Calibration Range
500 – 2000 kg
M2 Calibration Range
200 – 2000 kg
Maximum capacity [Max]
2100 kg
Readability [d]
2 g
Standard repeatability [5% Max]
2,5 g
Standard repeatability [Max]
5 g
Permissible repeatability
10 g
Eccentricity (tested load)
1d / 1 mm
Electric compensation range
0 – 2100 kg
Stabilization time
10 s
Adjustment
internal (automatic)
Display
10″ graphic colour touchscreen
Recommended load speed
0,3 m/min
Maximum permissible load speed
0,6 m/min
Communication interface
2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot
Operating temperature
+15 – +30 °C
Operating temperature change rate
±1 °C / 12 h
Relative humidity
40% – 60%
Relative humidity change rate
±5% / 4 h
Weighing pan dimensions
1250×1000 mm
Packaging dimensions
1250×1500×613 mm
Net weight
530 kg
Gross weight
665 kg
HRP 500.1.5Y.KO Mass Comparator
This image is for reference only.
HRP 500.1.5Y.KO Mass Comparator
close Exit
This image is for reference only.
HRP 500.1.5Y.KO Mass Comparator
Availability:
To order
Estimated shipping date :
Ask for delivery time
Price:
45730.80
 GBP
with 20% VAT, shipping cost not included
Choose a variant:
HRP 500.1.5Y.KO Mass Comparatorkeyboard_arrow_down
  • HRP 200.5Y.KO Mass Comparator
    Max: 210kg | d: 0,2g
  • HRP 1000.5Y.KO Mass Comparator
    Max: 1050kg | d: 1g
  • HRP 500.5Y.KO Mass Comparator
    Max: 510kg | d: 0,5g
  • HRP 2000.5Y.KO Mass Comparator
    Max: 2100kg | d: 2g
  • HRP 500.1.5Y.KO Mass Comparator
    Max: 510kg | d: 0,1g
  • HRP 150.1.5Y.KO Mass Comparator
    Max: 151kg | d: 0,05g
  • HRP 1000.1.5Y.KO Mass Comparator
    Max: 1050kg | d: 0,5g

Pcs.

Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569


Delivery only on the territory of United Kingdom
Code:
WL-414-0026

Buying from the producer is all about the pros


✓ Update as standard

You always get the latest version of the device and software. We are constantly improving our products.

✓ This is priceless

Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

✓ Smaller carbon footprint

A solidly packaged shipment travels only one way – the one to you.

✓ Long life for your balance

In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

✓ The important thing

You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

Overview


The HRP 5Y.KO series of mass comparators enables calibrating mass standards and weights in accordance with OIML Recommendation (R-111) for class F2 and lower classes.

Comparators are used to ensure consistency in mass measurements as well as to verify weights according to legal metrology requirements. RADWAG mass comparators have been recognized by calibration laboratories in many countries.

The HRP 5Y.KO mass comparators consist of two elements: a professional weighing platform (modern design of an electromagnetic mechanism in a hermetic steel casing) and 5Y terminal. The weighing platform is made of steel and features marks facilitating centric loading of mass standards.

The comparator is equipped with a self-centring weighing pan, which significantly minimises the influence of eccentricity during measurements. The self-centring weighing pan eliminates the error of placing the weight "out of pan centre". This solution also enables calibrating weights of different shapes and dimensions without the need to set the positioners for central loading of the mass standard each time.

The comparator has a user-friendly menu.

Data security and work results archiving are ensured by RADWAG terminal software.

2 years warranty
2 years warranty
CE
CE

Datasheet

E1 Calibration Range
-
E2 Calibration Range
-
F1 Calibration Range
500 kg
F2 Calibration Range
100 – 500 kg
M1 Calibration Range
20 kg ÷ 500 kg
M2 Calibration Range
10 – 500 kg
Maximum capacity [Max]
510 kg
Readability [d]
0,1 g
Standard repeatability [5% Max]
0,2 g
Standard repeatability [Max]
0,4 g
Permissible repeatability
0,6 g
Eccentricity (tested load)
2d / 1 mm
Electric compensation range
0 – 510 kg
Stabilization time
10 s
Adjustment
external
Display
10″ graphic colour touchscreen
Recommended load speed
0,3 m/min
Maximum permissible load speed
0,6 m/min
Communication interface
2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot
Operating temperature
+15 – +30 °C
Operating temperature change rate
±1 °C / 12 h
Relative humidity
40% – 60%
Relative humidity change rate
±5% / 4 h
Weighing pan dimensions
1000×800 mm
Self-centering weighing pan dimensions
600×600 mm
Weighing unit dimensions without self-centering weighing pan
1010×800×182 mm
Weighing unit dimensions with self-centering weighing pan
1010×800×275 mm
Controling device dimensions
249×170×72 mm
Comparator packaging dimensions without self-centering weighing pan
1200×1000×440 mm
Comparator packaging dimensions with self-centering weighing pan
1200×1000×485 mm
Net weight
200 kg
Gross weight
269 kg
HRP 150.1.5Y.KO Mass Comparator
This image is for reference only.
HRP 150.1.5Y.KO Mass Comparator
close Exit
This image is for reference only.
HRP 150.1.5Y.KO Mass Comparator
Availability:
To order
Estimated shipping date :
Ask for delivery time
Price:
17935.20
 GBP
with 20% VAT, shipping cost not included
Choose a variant:
HRP 150.1.5Y.KO Mass Comparatorkeyboard_arrow_down
  • HRP 200.5Y.KO Mass Comparator
    Max: 210kg | d: 0,2g
  • HRP 1000.5Y.KO Mass Comparator
    Max: 1050kg | d: 1g
  • HRP 500.5Y.KO Mass Comparator
    Max: 510kg | d: 0,5g
  • HRP 2000.5Y.KO Mass Comparator
    Max: 2100kg | d: 2g
  • HRP 500.1.5Y.KO Mass Comparator
    Max: 510kg | d: 0,1g
  • HRP 150.1.5Y.KO Mass Comparator
    Max: 151kg | d: 0,05g
  • HRP 1000.1.5Y.KO Mass Comparator
    Max: 1050kg | d: 0,5g

Pcs.

Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569


Delivery only on the territory of United Kingdom
Code:
WL-414-0023

Buying from the producer is all about the pros


✓ Update as standard

You always get the latest version of the device and software. We are constantly improving our products.

✓ This is priceless

Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

✓ Smaller carbon footprint

A solidly packaged shipment travels only one way – the one to you.

✓ Long life for your balance

In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

✓ The important thing

You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

Overview


The HRP 5Y.KO series of mass comparators enables calibrating mass standards and weights in accordance with OIML Recommendation (R-111) for class F2 and lower classes.

Comparators are used to ensure consistency in mass measurements as well as to verify weights according to legal metrology requirements. RADWAG mass comparators have been recognized by calibration laboratories in many countries.

The HRP 5Y.KO mass comparators consist of two elements: a professional weighing platform (modern design of an electromagnetic mechanism in a hermetic steel casing) and 5Y terminal. The weighing platform is made of steel and features marks facilitating centric loading of mass standards.

The comparator is equipped with a self-centring weighing pan, which significantly minimises the influence of eccentricity during measurements. The self-centring weighing pan eliminates the error of placing the weight "out of pan centre". This solution also enables calibrating weights of different shapes and dimensions without the need to set the positioners for central loading of the mass standard each time.

The comparator has a user-friendly menu.

Data security and work results archiving are ensured by RADWAG terminal software.

2 years warranty
2 years warranty
CE
CE

Datasheet

E1 Calibration Range
-
E2 Calibration Range
-
F1 Calibration Range
100 kg
F2 Calibration Range
50 – 100 kg
M1 Calibration Range
20 – 100 kg
M2 Calibration Range
10 – 100 kg
Maximum capacity [Max]
151 kg
Readability [d]
0,05 g
Standard repeatability [5% Max]
0,1 g
Standard repeatability [Max]
0,15 g
Permissible repeatability
0,25 g
Eccentricity (tested load)
2d / 1 mm
Electric compensation range
0 – 151 kg
Stabilization time
10 s
Adjustment
internal (automatic)
Display
10″ graphic colour touchscreen
Recommended load speed
0,3 m/min
Maximum permissible load speed
0,6 m/min
Communication interface
2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot
Operating temperature
+15 – +30 °C
Operating temperature change rate
±1 °C / 12 h
Relative humidity
40% – 60%
Relative humidity change rate
±5% / 4 h
Weighing pan dimensions
800×600 mm
Self-centering weighing pan dimensions
600×600 mm
Weighing unit dimensions without self-centering weighing pan
810×600×165 mm
Weighing unit dimensions with self-centering weighing pan
810×600×260 mm
Controling device dimensions
249×170×72 mm
Comparator packaging dimensions without self-centering weighing pan
988×800×310 mm
Comparator packaging dimensions with self-centering weighing pan
988×800×355 mm
Net weight
143,5 kg
Gross weight
166,5 kg
HRP 1000.1.5Y.KO Mass Comparator
This image is for reference only.
HRP 1000.1.5Y.KO Mass Comparator
close Exit
This image is for reference only.
HRP 1000.1.5Y.KO Mass Comparator
Availability:
To order
Estimated shipping date :
Ask for delivery time
Price:
45111.60
 GBP
with 20% VAT, shipping cost not included
Choose a variant:
HRP 1000.1.5Y.KO Mass Comparatorkeyboard_arrow_down
  • HRP 200.5Y.KO Mass Comparator
    Max: 210kg | d: 0,2g
  • HRP 1000.5Y.KO Mass Comparator
    Max: 1050kg | d: 1g
  • HRP 500.5Y.KO Mass Comparator
    Max: 510kg | d: 0,5g
  • HRP 2000.5Y.KO Mass Comparator
    Max: 2100kg | d: 2g
  • HRP 500.1.5Y.KO Mass Comparator
    Max: 510kg | d: 0,1g
  • HRP 150.1.5Y.KO Mass Comparator
    Max: 151kg | d: 0,05g
  • HRP 1000.1.5Y.KO Mass Comparator
    Max: 1050kg | d: 0,5g

Pcs.

Add to basket
We are near you.
We have been manufacturing weighing devices since 1984.

RADWAG UK Limited
16 Macon Court, Herald Drive, Crewe, CW1 6EA
+44 01625 569569


Delivery only on the territory of United Kingdom
Code:
WL-414-0032

Buying from the producer is all about the pros


✓ Update as standard

You always get the latest version of the device and software. We are constantly improving our products.

✓ This is priceless

Technical support from the product developers. Who better to know the answers to your questions? Like our Facebooku profile – stay in touch with us.

✓ Smaller carbon footprint

A solidly packaged shipment travels only one way – the one to you.

✓ Long life for your balance

In our permanent offer you will find accessories for our balances and scales, such as cables, weighing pans and power supplies, as well as all spare parts. And we carry out legalization and periodic inspections in our laboratory.

✓ The important thing

You buy a product developed and manufactured in Europe – you get a device with a certain standard of compliance.

Overview


The HRP 5Y.KO series of mass comparators enables calibrating mass standards and weights in accordance with OIML Recommendation (R-111) for class F2 and lower classes.

Comparators are used to ensure consistency in mass measurements as well as to verify weights according to legal metrology requirements. RADWAG mass comparators have been recognized by calibration laboratories in many countries.

The HRP 5Y.KO mass comparators consist of two elements: a professional weighing platform (modern design of an electromagnetic mechanism in a hermetic steel casing) and 5Y terminal. The weighing platform is made of steel and features marks facilitating centric loading of mass standards.

The comparator is equipped with a self-centring weighing pan, which significantly minimises the influence of eccentricity during measurements. The self-centring weighing pan eliminates the error of placing the weight "out of pan centre". This solution also enables calibrating weights of different shapes and dimensions without the need to set the positioners for central loading of the mass standard each time.

The comparator has a user-friendly menu.

Data security and work results archiving are ensured by RADWAG terminal software.

2 years warranty
2 years warranty
CE
CE

Datasheet

E1 Calibration Range
-
E2 Calibration Range
-
F1 Calibration Range
1000 kg
F2 Calibration Range
500 – 1000 kg
M1 Calibration Range
100 – 1000 kg
M2 Calibration Range
50 – 1000 kg
Maximum capacity [Max]
1050 kg
Readability [d]
0,5 g
Standard repeatability [5% Max]
0,9 g
Standard repeatability [Max]
1,2 g
Permissible repeatability
2 g
Eccentric load deviation
0 – weighing pan self centering
Eccentricity (tested load)
1d / 1 mm
Electric compensation range
0 – 1050 kg
Stabilization time
10 s
Adjustment
internal (automatic)
Display
10″ graphic colour touchscreen
Recommended load speed
0,3 m/min
Maximum permissible load speed
0,6 m/min
Communication interface
2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot
Operating temperature
+15 – +30 °C
Operating temperature change rate
±1 °C / 12 h
Relative humidity
40% – 60%
Relative humidity change rate
±5% / 4 h
Weighing pan dimensions
1000×800 mm
Self-centering weighing pan dimensions
600×600 mm
Weighing unit dimensions without self-centering weighing pan
1010×800×182 mm
Weighing unit dimensions with self-centering weighing pan
1010×800×275 mm
Controling device dimensions
249×170×72 mm
Comparator packaging dimensions without self-centering weighing pan
1200×1000×440 mm
Comparator packaging dimensions with self-centering weighing pan
1200×1000×485 mm
Net weight
200 kg
Gross weight
269 kg
